Device Management

Path: /devices

To deploy and operate services in KIOPS, you first need to register your infrastructure devices. The [Device Management] page allows you to register and manage various infrastructure devices such as VMs and bare-metal servers.

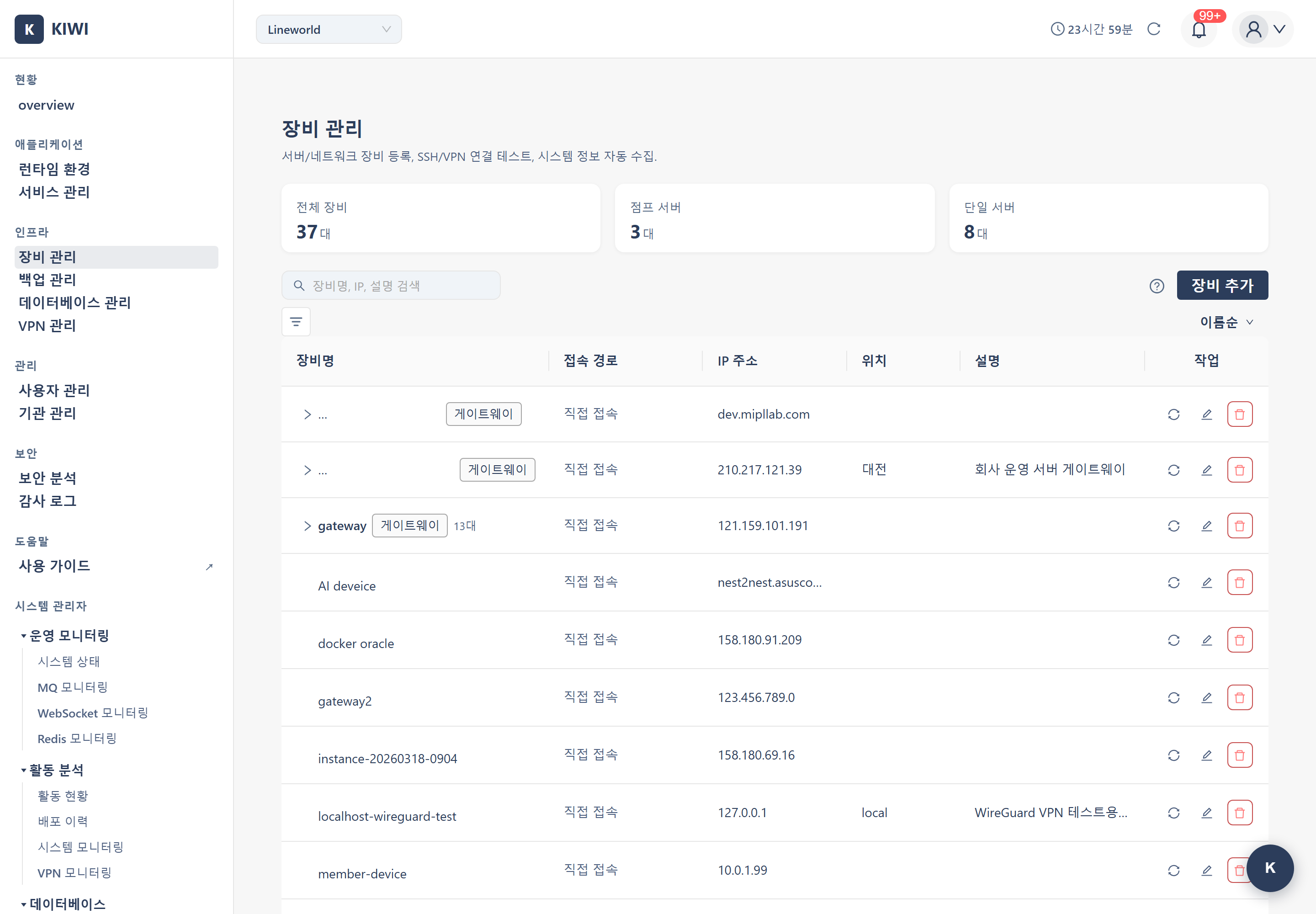

Device Management Screen

Permission Notice

If you cannot access this page, please request permission from your organization administrator. Device management requires admin privileges as it directly affects the infrastructure.

Why Do You Need to Register Devices?​

KIOPS performs the following tasks based on registered devices:

  • Runtime Environment Setup: Connect runtimes like Docker and Kubernetes to registered devices.
  • Automated Deployment: Automatically deploy services to registered devices after builds.
  • Monitoring: Monitor device resource usage in real-time
  • Backup Management: Back up containers and data on devices.
Before You Start

Prepare the following information before registering a device:

  • Server IP address and SSH port (default is 22)
  • SSH-accessible user account credentials (password or SSH private key file)
  • Jump server information if the server is behind a firewall

Key Features​

Device Registration​

Register servers in KIOPS by entering SSH connection information. Registered devices can be connected as Kubernetes cluster nodes or Docker hosts on the [Runtime Environments] page.

What is SSH?

SSH (Secure Shell) is a protocol for securely accessing remote servers over a network. It provides excellent security through encrypted communication and is the standard method for server management. The default port is 22, but other ports are often used for security purposes.

SSH Multi-Hop (Jump Server Relay)​

In security-enhanced networks, you cannot directly access internal servers from outside. In such cases, you need to go through a Jump Server.

User PC → Jump Server (Public IP) → Internal Server (Private IP)

KIOPS automatically handles such multi-hop connections. Simply specify the parent device, and KIOPS will set up the relay connection for you.

When You Need a Jump Server
  • When accessing servers behind a firewall
  • When accessing servers in a private network (private IP)
  • When direct access is blocked due to security policies.

VPN Integration​

Servers accessible only via VPN can also be managed in KIOPS. When you attach a VPN profile to a device, the connection mode selection modal shown when starting an operation lets you pick one of three modes:

  • Auto: Use the VPN tunnel if an active session exists, otherwise fall back to direct SSH.
  • VPN: Force the VPN tunnel (a quick-connect modal opens if no session exists).
  • Direct SSH: Ignore the VPN profile and use the registered multi-hop chain as-is.
In VPN mode, jump-server credentials are not required

In Auto or VPN mode, when an active session exists and the target IP is within the VPN's AllowedIPs, KIOPS automatically skips registered parent device (jump server) hops and connects using only the target server's SSH information. There is no need to manage jump-server passwords/keys separately, which reduces credential overhead.

Direct SSH mode uses the registered multi-hop chain in full, so credentials for every hop are needed.

Automatic System Information Collection​

Collect hardware information from registered devices automatically via SSH. You can easily assess your infrastructure status without installing any additional agents.

  • OS: Operating system type and version. Example: Ubuntu 22.04 LTS.
  • CPU: Processor model and core count. Example: Intel Xeon 8 cores.
  • Memory: Total RAM capacity. Example: 32GB.
  • Disk: Storage capacity and usage. Example: 500GB (45% used).

UI Layout​

As your device count grows, finding specific devices becomes challenging. KIOPS provides a search feature.

  • Search: Search across the device name, IP address, and description fields. Example: "web-server" or "192.168.1".

There is no separate VPN filter or location filter.

Device List Columns​

The device list consists of the following 6 columns.

  • Device Name: Name for identifying the device (e.g., prod-web-01). Devices that have child devices are shown with a Gateway tag along with the number of connected child devices (e.g., 3).
  • Access Path: The route used to connect to the device. Shown as Direct Connection when there is no parent device, or as "via [parent device name]" when a parent device exists; hovering reveals the IP of the relay device.
  • IP Address: Server IP and SSH port (e.g., 192.168.1.100:22).
  • Location: Physical/logical location of the device.
  • Description: Notes about the device's purpose, owner, etc.
  • Actions: Action buttons such as edit, delete, and system info collection.

Hierarchical Display​

Parent-child device relationships are visualized in a tree structure. You can see at a glance the relationship between jump servers and their connected internal servers.

📦 jump-server (210.1.1.100)
├── 📦 internal-web-01 (192.168.1.10)
├── 📦 internal-web-02 (192.168.1.11)
└── 📦 internal-db-01 (192.168.1.20)

How to Use​

Registering a Device​

Here's how to register a new server in KIOPS.

Step 1: Open the Add Device Modal

Click the Add Device button at the top of the screen to open the input modal.

Device Add Modal

Step 3: Enter Basic Information

  • Parent Device (Optional): Jump server to route through. Leave empty if directly accessible.
  • Device Name (Required): Identifiable name. Recommend format: purpose-env-number (e.g., web-prod-01).
  • IP Address (Required): Server IP address. Enter private IP if using parent device.
  • Port (Required): SSH port number. Default is 22, enter actual port if changed.
  • Location (Optional): Device location info. Recommended for easier management.
  • VPN Profile (Optional): Select for VPN integration. Leave empty if accessible without VPN.
  • Description (Optional): Device description. Notes about purpose, owner, etc.

Step 4: Complete Registration

After entering all information, click the Add button to register the device.

Device Naming Tips

Using consistent naming conventions makes device management much easier:

  • web-prod-01: Web server, production environment, number 1
  • db-dev-master: DB server, development environment, master.
  • jump-seoul: Jump server, Seoul location.

Configuring SSH Multi-Hop​

Set up internal network servers to be accessed through a jump server.

Step 1: Register the Jump Server (Parent Device) First

Register the jump server that is directly accessible from outside. Leave the Parent Device field empty for this device.

Step 2: Register the Internal Server (Child Device)

When registering the internal server, select the jump server from Step 1 in the Parent Device dropdown.

Step 3: Verify the Connection Path

Once registration is complete, the device list displays the hierarchy. KIOPS automatically routes through the jump server for SSH connections.

Note

When using multi-hop, SSH credentials are required for each device in the chain. Prepare account information (password or SSH key) for both the jump server and internal servers. Each hop can use a different authentication method.

Editing a Device​

Modify information for registered devices.

  1. Find the device you want to modify in the device list
  2. Click the Edit button (pencil icon) for that device.
  3. Modify the information and click the Save button.

Deleting a Device​

Delete devices that are no longer in use.

  1. Find the device you want to delete in the device list
  2. Click the Delete button (trash icon) for that device.
  3. Click Delete in the confirmation dialog
Check Before Deleting
  • Deleted devices cannot be recovered
  • Child devices will be deleted together if the parent is deleted.
  • May affect connected runtime environments or service deployments.

Detailed Feature Guides​

Collecting System Information​

Collect hardware information from devices to assess your infrastructure status.

  1. Click the Collect icon for the device you want to gather information from
  2. An SSH credentials input modal appears.
  3. Select the authentication method and enter credentials:
    • Password authentication: Enter the username and password
    • SSH Key authentication: Enter the username and upload an SSH private key file (.pem, .key)
  4. Click the Collect button to automatically gather OS, CPU, Memory, and Disk information.
Regular Information Collection

Re-collect system information when server specs change or when you want to check disk usage. The information will be updated to the latest status.

Using as a Docker Host​

How to use a registered device as a Docker runtime.

  1. Register the device on the [Device Management] page
  2. Navigate to the [Runtime Environments] page
  3. When adding a Docker runtime, select the registered device as the host

VPN Integration​

Register devices that are only accessible through VPN.

  1. Open the device registration or edit screen
  2. Select the VPN to use from the VPN Profile dropdown
  3. Use the Test Connection button to verify connectivity through the VPN tunnel
  4. Click the Save button once the connection succeeds.

After this, every operation on this device (system info collection, runtime linkage, deployment, backup, and so on) shows the connection mode selection modal. Pick Auto / VPN / Direct SSH as needed; in Auto and VPN modes the registered jump-server hop is bypassed automatically and the operation proceeds using only the target SSH information.

Glossary​

  • VM (Virtual Machine): A virtual computer implemented in software on physical hardware. Multiple VMs can run on a single physical server.
  • Bare-metal Server: A server with the OS installed directly on physical hardware without virtualization. Suitable for performance-critical workloads.
  • SSH Port: Network port used for SSH connections. Default is 22, but it's often changed to other ports for security.
  • Jump Server: A relay server for accessing internal networks. Also called a Bastion Host.
  • VPN Tunnel: An encrypted virtual private network connection path. Safely access private networks through the public internet.

Frequently Asked Questions​

Q: Connection fails after device registration.

Check the following:

  • Verify the IP address and port are correct
  • Ensure the port is open in the firewall
  • If a jump server is needed, verify the parent device is configured.

Q: System information collection fails.

If SSH connects but information collection fails:

  • Check if the account has permission to execute system commands.
  • Some commands may require sudo privileges.

Q: Can I delete only child devices without deleting the parent?

Yes, child devices can be deleted independently. However, be careful that deleting a parent device will also delete all its child devices.
